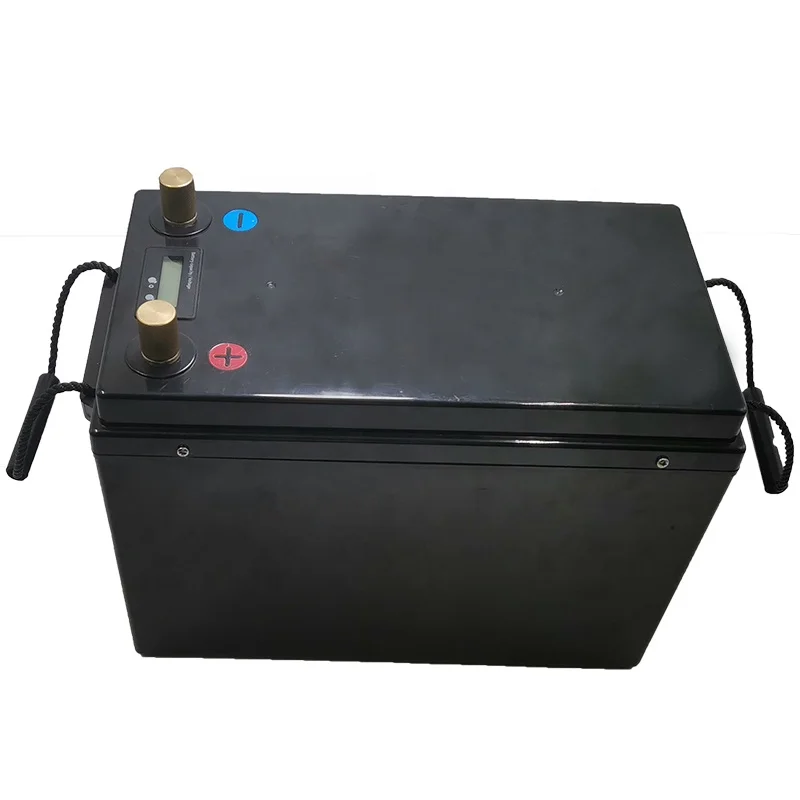

12V 36V Solar LiFePO4 Lithium Golf Cart Batteries Pack 200ah 200Amp

Brand Name : OEM & ODM

Model Number : OEM & ODM

Certification : CE UN38.3 MSDS

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 10000per

Delivery Time : samples: 8days, bulk order: 30days

Packaging Details : According to Stardard Export Packing. Carton box, wooden box, wooden pallet

Product name : 48V 200ah

Application : BOATS, Golf Carts, electric vehicles, Electric Wheelchairs, Electric Forklifts, electric car

Battery : 48V 200ah battery pack

Material : LiFePO4

Continuous charge current : ≤50A

Weight : 19kgs

Contact Now

12V 200Ah Lithium-Ion Battery Pack: Solar Battery for Golf Carts


Introducing our 12V 200Ah lithium-ion battery pack, designed specifically for solar applications in golf carts:

Voltage: 12V, providing reliable power for your golf cart's energy needs.
Capacity: 200Ah, ensuring ample energy storage for extended use on the course.
Lithium-Ion Technology: Offers enhanced safety, longer lifespan, and superior performance compared to traditional lead-acid batteries.
Optimized for Solar Use: Perfectly suited for charging via solar panels, maximizing renewable energy utilization.
Lightweight Design: Significantly lighter than lead-acid alternatives, improving the overall efficiency of your golf cart.
Low Maintenance: Engineered for hassle-free operation with minimal upkeep required.
This 12V 200Ah lithium-ion battery pack is the ideal solution for powering your golf cart efficiently and sustainably.

Product Paramenters
Nominal Voltage
12V
Nominal Capacity
200Ah
Energy
2560Wh
Cycle Life
>3000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity
Months Self Discharge
≤3.5% per month at 25℃
Charge Mode(CC/CV)
0.5C constant current(CC) charge to14.6V then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C
Charging time
Approx 2 hours
Max.Charge Current
100A
Charge Voltage
14.6±0.2V
Discharge Current
150A
Max. Continuous Current
600A
Disxcharge Cut - off Voltage
10.0V
Max.Pulse Current
600A
Cell & Method
IFR32700 N60, 4S17P
Plastic Case
ABS
Weight
19Kg
Terminal
M8
Size
W345*H190*D245mm
12V 36V Solar LiFePO4 Lithium Golf Cart Batteries Pack 200ah 200Amp
12V 36V Solar LiFePO4 Lithium Golf Cart Batteries Pack 200ah 200Amp
12V 36V Solar LiFePO4 Lithium Golf Cart Batteries Pack 200ah 200Amp
Advantages of Lifepo4 Battery Pack Against Lead-Acid:
1.
Longer life cycle ;
2.
Portable with Small size and light weight;
3.
Good discharge performance;
4.
More safe and environmental protection;
5.
Higher power discharge;
6.
Higher temperature resistance.

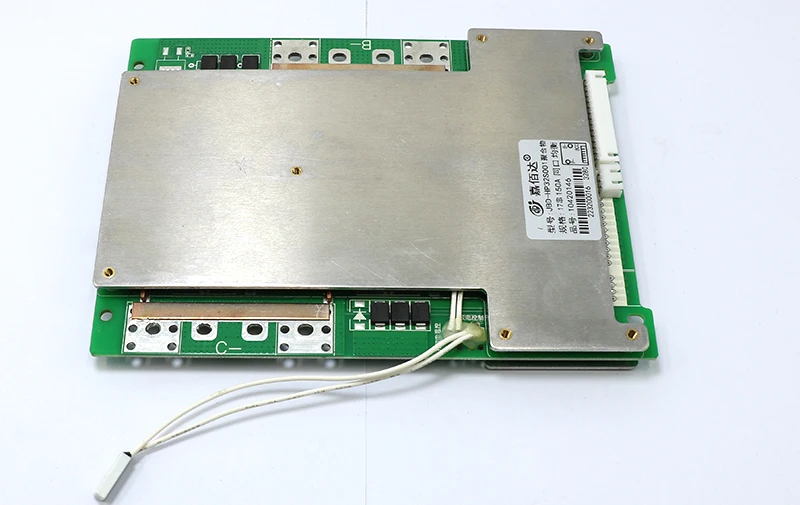

Performance with BMS
Rechargeable 12V 200ah lithium battery iron phosphate lifepo4 battery pack
output power customized with BMS
4S 100AH Performance with BMS
12V 36V Solar LiFePO4 Lithium Golf Cart Batteries Pack 200ah 200Amp
12V 36V Solar LiFePO4 Lithium Golf Cart Batteries Pack 200ah 200Amp
Product Applications
12V 36V Solar LiFePO4 Lithium Golf Cart Batteries Pack 200ah 200Amp2800:
Product Shipping:
Specific Shipping methods and processing time : 1.Transportation to USA:By sea+Express(DDP,Tax free) ETD:6-8 days ETA:28-35 days after sailing (the delivery time for most orders. Please wait patiently or contact us online) The tracking will be updated after pick up by local express.Usually it will take around 23-28 days after departure.
2.Transportation to USA:By Air+Express(DDP,Tax free) ETD:6-8 days ETA:15~20 days after departure (the delivery time for most orders) The tracking will be updated after pick up in 12~16 days by local express.
3.Transportation to EU:By railway+Express(DDP,Tax free) ETD:6-8 days ETA:30-42 days after sailing (the delivery time for most orders. Please wait patiently or contact us online) The tracking will be updated after pick up by local express.Usually it will take around 28~35 days after departure.
4.Transportation to Russian Federation, Southeast Asia & Taiwan,China(DDP,Tax free) Southeast Asia ( ETD: 6~8 days, ETA: 15~20 days) Russian Federation(CEDK) (ETD: 6~8 days, ETA: 23~28 days) Taiwan (ETD: 6~8 days, ETA: 9~14 days) South Africa (16~20 days) Transportation to Japan (DAP, door to door): ( ETD: 6~8 days, ETA: 15~20 days)
5.Transportation to most countries by express (DAP,Not included import duties) ETD: 6~8 days ETA: 7~12 days Tips: for DDP shipment way,The parcels need to pass the customs of your country before they can be delivered to the local UPS,FedEx or DHL. Once they pass the customs and the transportation updated, you can usually receive the goods within 3-5 days.

FAQ
Q1: Can I get a lithium battery sample for testing?
molds and fixtures.

Q4: How do you control your lithium battery product quality?
A: All batteries have 10 steps testing during the whole production, and 100% be tested before delivery.

Q5: What is your terms of packing?
A: Generally, we pack our lithium battery in neutral white boxes and brown cartons. If you have legally registered patent, we can
pack the goods in your branded boxes after getting your authorization letters.

Q6: What is your trade terms?
A: EXW, FOB, CFR, CIF, DDU, DDP.

Q7: How about your battery delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends on the items and your order quantity.

Q8: How long will it take for my battery to arrive?
A: Delivery will be made by courier, usually within 10-13 business days to US and EU countries. Some remote areas may take longer.
Delivery time may vary for different countries and can take up to 3 weeks. Sea shipping is available.

Q9: What’s your warranty for lithium battery products?
A: Generally speaking, It’s 12 months warranty.

Q10: What should you pay attention to when using lithium batteries?
A: Do not knock, puncture, modify the lithium battery, do not place it directly under sun or rain for long time, do not over-charge and over-discharge the battery pack, charge the lithium battery with a good quality, matching lithium battery charger.
